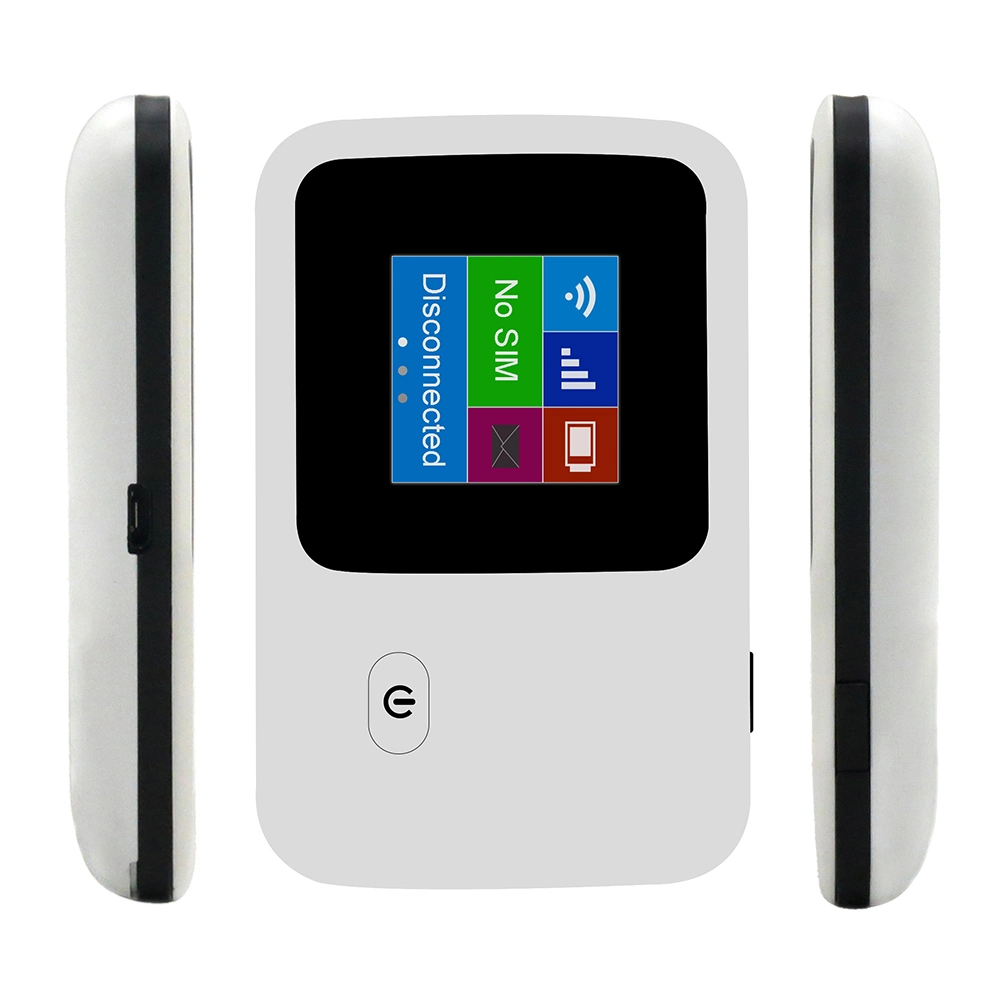

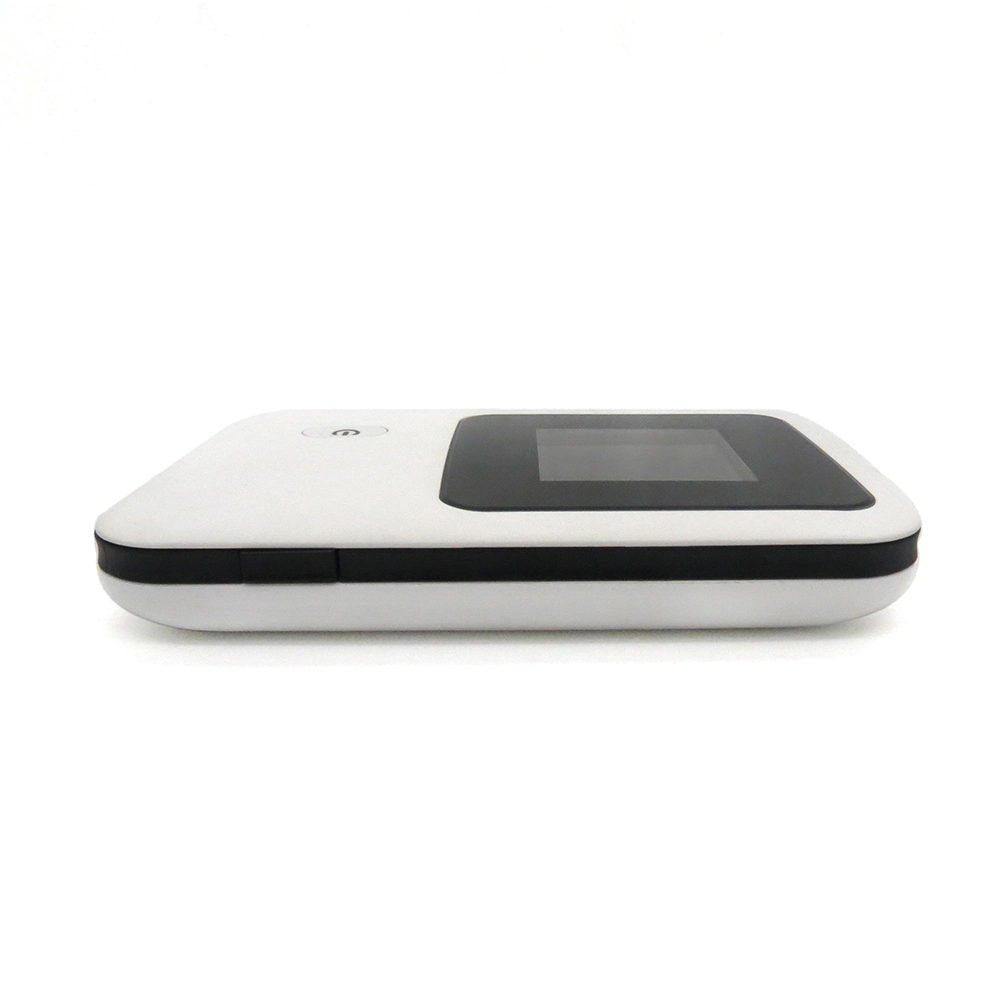

High Speed 300Mbps LTE 3G 4G Unlocked Mobile Wireless MiFis WiFi Pocket Hotspot 2000mAh Router with SIM Card Slot
Main futures :
Parameters:
Applicable environment
1) Altitude region: in the region with attitude of no more than 5,000m, the power adapter for ultimate use determines the applicable altitude region.
2) Environmental temperature: The product can be used normally in environmental temperature of -10ºC - 60ºC. Do not use the product in the environment of over high or over low temperature.
About us
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Main futures :
1.Supports multiple 4G LTE Bands and 2.4GHz WiFi.
2. Brand new MDM9225 chipset, more stable signal and higher speed;
3. Up to 300Mbps via WiFi , up to 150Mbps via LTE;
4. Design lightweight, easy to carry, you can use anytime and anywhere
5. Support up to 10 devices simultaneously
6. Real 2000mAh battery for up to 6- 8 hours of working, 300 hours of standby time;
7. Frequency can be customized for different country
Parameters:
| Model | SHFi4G9X1A | |
| Description | 4G LTE Mobile WiFi | |
| Product ID | Dimensions | 93mm*59mm*14mm |
| Weight | 87g | |
| Battery | 2000mAh | |
| 3G/LTE Hardware | ||
| Communication System | Support TD-LTE/LTE FDD/WCDMA/GSM | |
| Hardware Platform | Chipset | MDM9225 |
| Memory | 4Gbit NAND+2Gbit LPDDR2 | |
| Protocol | TD-LTE | CAT4, up to 112Mbps DL and 17Mbps UL |
| LTE FDD | CAT4, up to 150Mbps DL and 50Mbps UL | |
| Frequency | TDD LTE | B38/40/41 |
| FDD LTE | Band1/2/3/4/5/7/8/20 /28 or 17(Can be customized) | |
| WCDMA | Band1/2/5/8 (2100/1900/850/900MHz) | |
| GSM | Band2/3/5/8 (1900/1800/850/900MHz) | |
| Power | LTE/TD-SCDMA | Power Class 3 |
| Antenna | Antenna Connector | Internal Antenna |
| WLAN AP Hardware | ||
| Wi-Fi Protocol | Support IEEE 802.11 b/g/n | |
| Hardware Platform | Chipset | RTL8192 |
| Memory | / | |
| Protocol | IEEE 802.11n | Support |
| IEEE 802.11g | Support | |
| IEEE 802.11b | Support | |
| Frequency | 2.4G | 1~13 channel |
| Power | IEEE 802.11n | 11dBm |
| RF Antenna | 2T2R | Internal, WiFi speed up to 300Mbps |
| External Interface | ||
| External Interface | SIM card slot | one Standard SIM card,bottom card slot |
| Power interface | Mirco USB 2.0 | |
| USB interface | Not support | |
| Buttons | Power button | one |
| WPS button | one | |
| Reset button | one,hole switch | |
| Display | Panel LED indicator | Power |
| Back LED indicator | / | |
| LCD display screen | TFT 1.44Inch 128*128 | |
| Software | ||
| WEB UI | Standard WEB UI(PC) | |
| Network setting | support | |
| Router setting | support | |
| System setting | support | |
| WIFI setting | support | |
| SMS/Phonebook setting | / | |
| LCD UI | / | |
| Gateway | TCP/IP Protocol | Support |
| UDP Protocol | Support | |
| IPv4 | Support | |
| IPv6 | Support | |
| SNTP | Support | |
| DHCP | Support | |
| Static state IP address assighment | Support | |
| DNS Relay | Not support | |
| ALG | Not support | |
| NAT | Support | |
| IP Firewall | Support | |
| VPN Passthrought | Not support | |
| softAP IPv6 | Support | |
| UPnP | Not support | |
| MAC Filter | Support | |
| IP Filter | Support | |
| URL Filter | Support | |
| NAT firewall | Not support | |
| WAN port flow statistics | Support | |
| WLAN | 802.11b | support |
| 802.11g | support | |
| 802.11n | support | |
| Power adjustment | support | |
| Auto channel select | support | |
| SSID broadcast | support | |
| WPS | support | |
| Security/ Encryption | WEP/WPA/WPA2 PSK | |
| MAC address filtering | Selectable support | |
| SMS | WEB UI Managerment | support |
| Security | PIN code lock | support |
| Modify PIN code | support | |
| Administrator password modify | support | |
| System upgrade | Local firmware upgrade | support(via Web UI/APP/PC remote upgrade) |
| Extended function | External Storage | / |
| Drivers | Driver install | / |
| Operation System | Win XP,Vista(32bit/64bit),WIN7(32bit/64bit),WIN8 | |
| Mac OS X10.6 and above version | ||
| Package | Mifi Device | 1 |
| Li-ion Battery | 1 | |
| Data Cable | 1 | |
| Adaptor | / | |
| Quick Guide | 1 | |
| Environment | Operating Temperature | 0~40ºC |
| Storage Temperature | -10~45ºC | |
Applicable environment
1) Altitude region: in the region with attitude of no more than 5,000m, the power adapter for ultimate use determines the applicable altitude region.
2) Environmental temperature: The product can be used normally in environmental temperature of -10ºC - 60ºC. Do not use the product in the environment of over high or over low temperature.
