Antenna technical parameters
| Design Specifications | Typical | |
| Working Frequency | 1575.42MHz | 824-960MHz,1710-2170MHz, 2300-2690MHz |
| Gain | ≤3.0dBi | -3.05dBi@824-860MHz -4.37dBi@1710-2170MHz -1.67dBi@2300-2690MHz |
| Antenna efficiency | 40% | 18.27%@824-860MHz 9.86%@1710-2170MHz 14.6%@2300-2690MHz |
| VSWR | ≤2.0 | ≤2.2 |
| Ploriaztion | Right-handed circular Pol | L Pol |
| Axial Ratio | ≤3.0 | / |
| Radiation pattern | Omni | Omni |
| Impedance | 50Ω | 50Ω |
| Power handling | 33dBm | 33dBm |

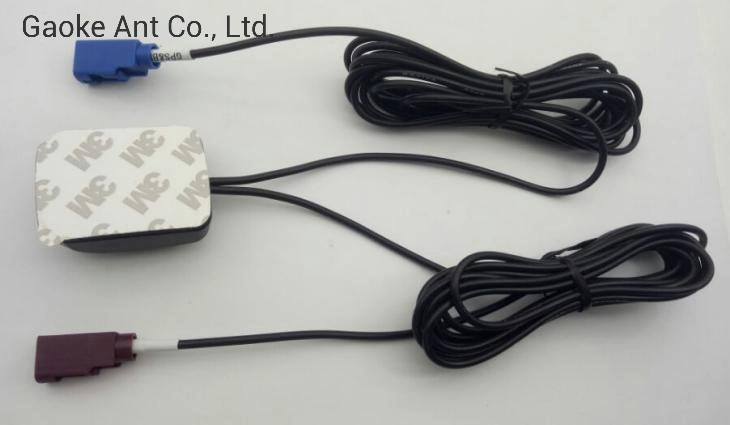

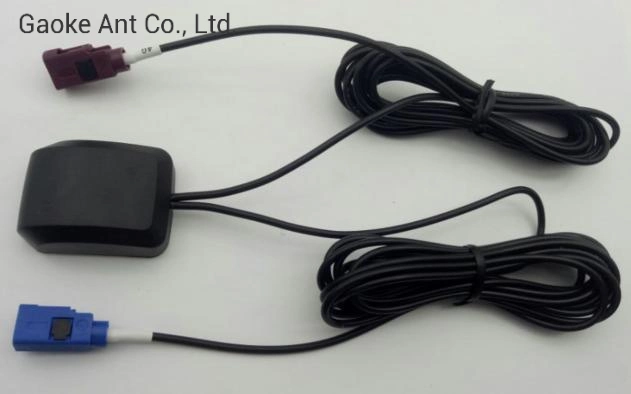

| Interface | FAKRA-C RG174-3M | FAKRA-D RG174-3M |
| Overal dimensions | 48.5x37x19mm | |
| Weight | 11.2g | |
| Operatin Temp | -40ºC~85ºC | |
| Storing Temp | -40ºC~85ºC | |
| NO | Item | Specifications |
| 1 | Frequency Range | 1575.42±2MHz |
| 2 | Amplifier gain | 28dBi±3 |
| 3 | V.S.W.R | ≤2.0 |
| 4 | Noise Figure | ≤2.0 |
| 5 | DC Voltage | 3~5V |
| 6 | DC Current | ≤20mA |
Return Loss
